Close collaboration with leading companies in the metering industry has allowed DEA-ht to make high reliability metering products compliant with the severe regulations of the sector. As of today, DEA-ht can boast the production of hundreds of thousands of parts manufactured and already installed throughout Europe.
DEA-ht radio devices for smart metering applications are available with the following technologies:

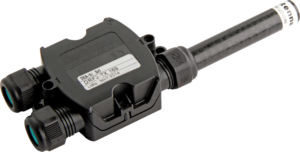

DRF2-TX169PA/868
TECHNICAL SPECIFICATIONS
- 2 digital inputs
- AES128 Encryption
- Replaceable lithium battery
- Battery life >10 years
- IP68
- Dimensions: 60 x 30x 190
AVAILABLE VERSIONS:
| DRF2-TX169PA | 169Mhz - 27dBm |
| DRF2-TX868 | 868Mhz - 12dBm |
Radio remote control device compliant with Wireless M-Bus standard compatible with any water/energy meter equipped with pulse output. The device allows you to set various parameters via radio and has an easy to replace lithium battery.

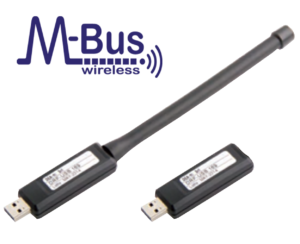

DRF-USB169/868
TECHNICAL SPECIFICATIONS
- Wireless M-Bus transmission protocol
- Baud rate: 9600 to 115.200
- Dimensions: 65 x 30 x 190
AVAILABLE VERSIONS:
| DRF-USB169PA | 169Mhz - 27dBm |
| DRF-USB868 | 868Mhz - 12dBm |
The DRF-USBxxx USB key is the easiest way to interface with a Wireless M-Bus ecosystem. Twincom Wireless software, developed by Microsoft Windows, allows you to read data coming from any device using standard Wireless M-Bus protocol. DRF-USBxxx is necessary for setting parameters during installation of DRFx-TXxxx modules and later on for reading their data.
DTP2-IP68/DIN
TECHNICAL SPECIFICATIONS
- 2 digital inputs
- Replaceable battery
- M-Bus transmission protocol
AVAILABLE VERSIONS:
| DTP-IP68 | IP68 case |
| DRF-DIN | DIN case |
DTP2 devices can read pulse trains in metering applications, process data and transmit them to a compatible device via M-BUS. The special architecture with double addressing considerably simplifies installation insofar as a single device can distinctly manage two separate meters.
